Hose management entirely as required
HANSAFLEX supports you with 360° hose management from manufacture to disposal, from individual services to all-round carefree packages.
Learn more

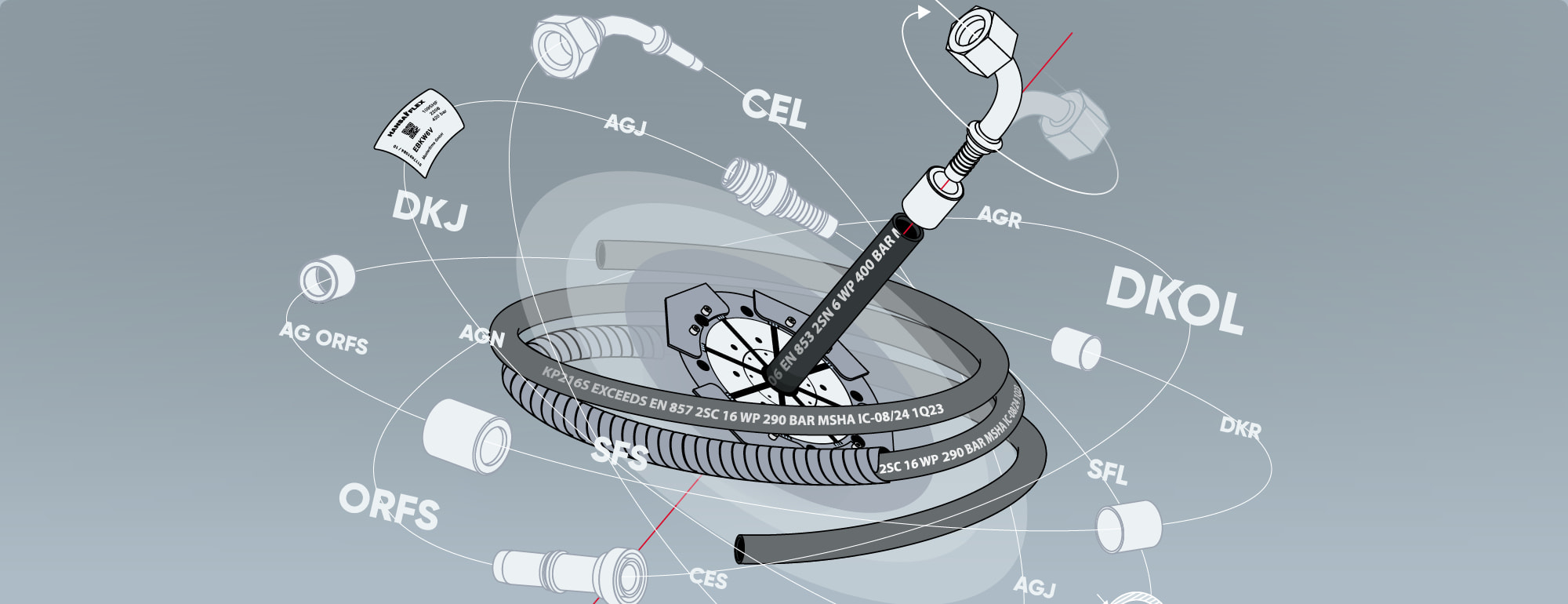

FASTER TO THE DESIRED PRODUCT WITH THE HOSE LINE CONFIGURATOR

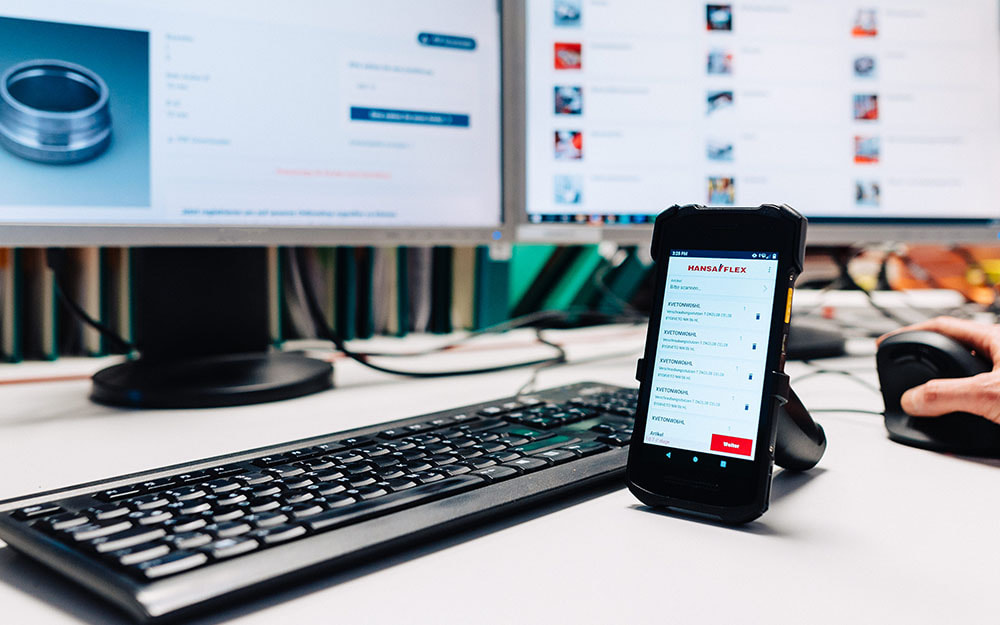

The HANSA-FLEX hose line configurator is a real milestone. With our digital hydraulic hose configurator, you can easily configure (hydraulic) hose lines yourself. In five steps, you can create your customised product online from around 90 hoses and 600 fittings in just a few minutes. Order with shipping or click & collect and place repeat orders with just two clicks thanks to X-CODE.
INDIVIDUAL HOSE ASSEMBLIES IN THE BEST HANSA-FLEX QUALITY
Take advantage of the digital hose line configurator and benefit from analogue craftsmanship, because each of your individually configured hose lines is hand-assembled by our quality assemblers.
Select and customise
Choose from around 90 hoses and 600 fittings and configure them individually.
Also mobile usable
Configure conveniently on the move using your smartphone or tablet.

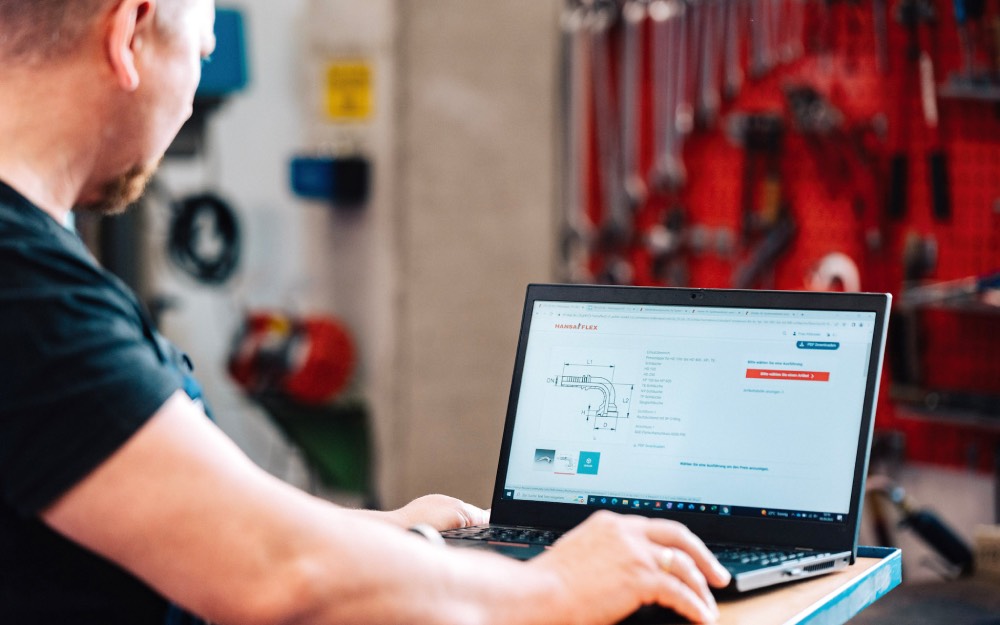

Click & Collect Option
Collection within 60 minutes of ordering from one of our 200 branches.
EXTENSIVE CONFIGURATION OPTIONS

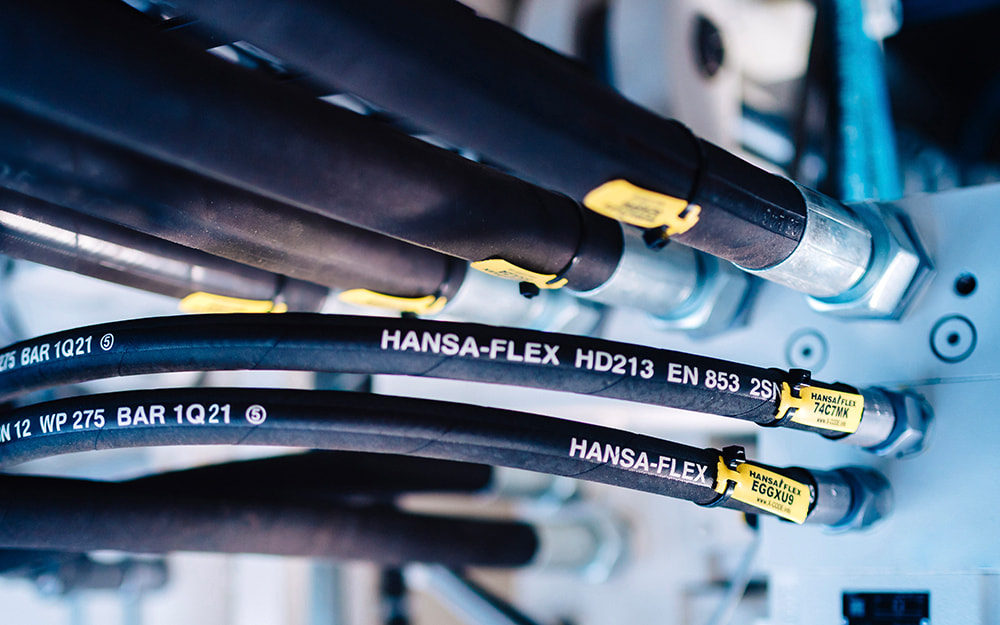

Many areas of application
The wide definition range of the parameters in the hose line configurator enables the individual configuration of hose lines for most common hydraulic applications.
- A total of around 90 hose materials
- Nominal diameters from 6 mm to 32 mm
- Temperature range from - 40° C to + 100° C
- Lengths between 400 mm and 40,000 mm
- Maximum dynamic operating pressure up to 500 bar

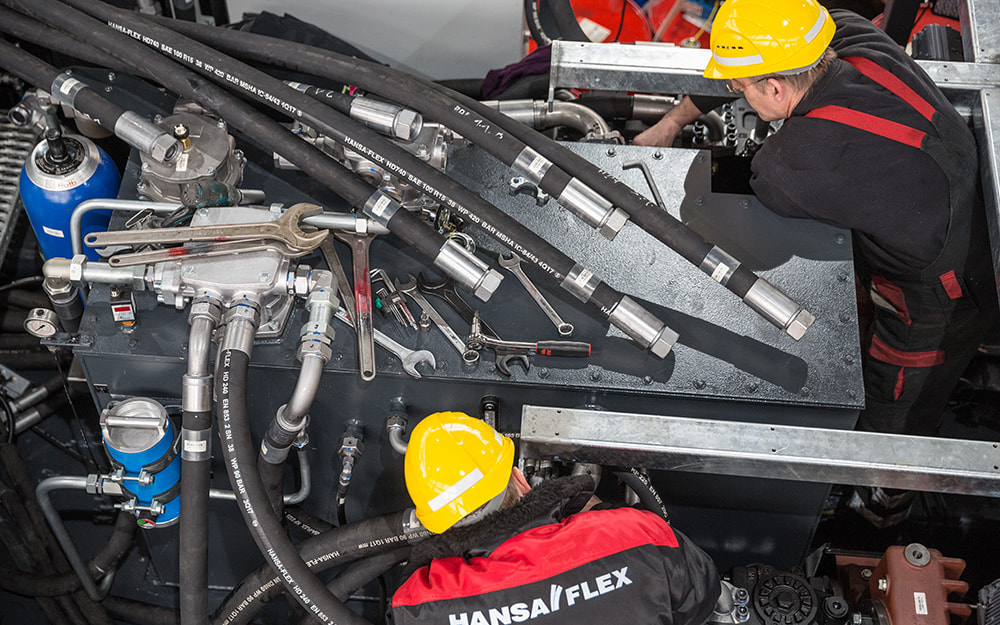

Hydraulic hose variants
The hose configurator automatically provides the appropriate hydraulic hose variants for selection based on the nominal width and the maximum dynamic operating pressure. Which hose variant is the best option in each case depends on the individual requirements.
- Elastomer hydraulic hoses for the most common requirements
- Compact hoses for tight installation space, for example in mobile hydraulics
- Thermoplastic hoses for particularly low weight

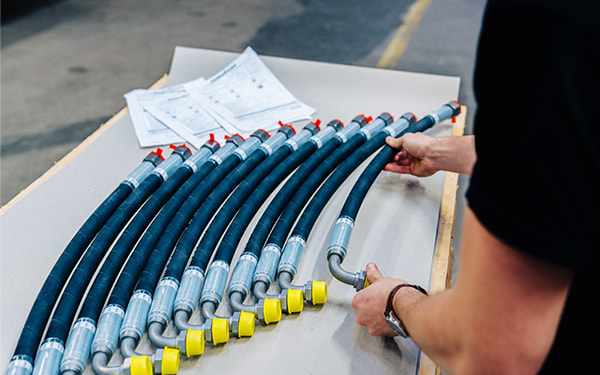

Fittings and connection types
The hose line configurator automatically compiles a clear selection of fittings and connection types from around 600 materials that optimally match the configured hose. For quicker identification of the desired product, both the standard market designation and the HANSA-FLEX designation are listed in the selection menu.
- Press nipples for medium and high pressure applications
- Press fittings type Interlock for extreme loads
- Non-peel press frames as well as peel press frames

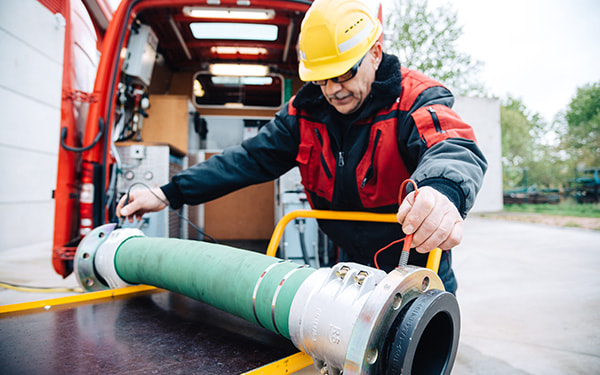

Hose protection and safety accessories
Hydraulic hose lines can be damaged by thermal or mechanical stress. The hose protection accessories that can be optionally selected in the hose line configurator protect hose lines from abrasion stress and help prevent personal injury.
- Heat-resistant plastic scuff protection coil up to 120° C
- Nylon protective hose for protection against oil jet injuries
- Particularly robust scuff protection coil made of spring steel wire
HANSA-FLEX OFFERS A COMPREHENSIVE RANGE OF HYDRAULIC SERVICES
